InstrumentStudio™ Interactive Software
PXI Waveform Generators are shipped with an interactive soft front panel called InstrumentStudio for ready-to-run operation. You can also combine your PXI Waveform Generator with a PXI Oscilloscope into a single view.
Standard Waveform Generation
A waveform generator can output many types of standard functions, such as sine, square, triangle, ramp, or noise waveforms, and user-defined arbitrary waveforms using the NI-FGEN API in LabVIEW, LabWindows™/CVI, and .NET languages.
Waveform Scripting
With the NI-FGEN driver, you can define standard and arbitrary waveforms that can be looped and burst using scripts.
Waveform Streaming
Waveform streaming is critical to generating long or constantly changing signals. A waveform generator can stream hundreds of megasamples per second to instrument memory.
Recommendations for First-Time Users

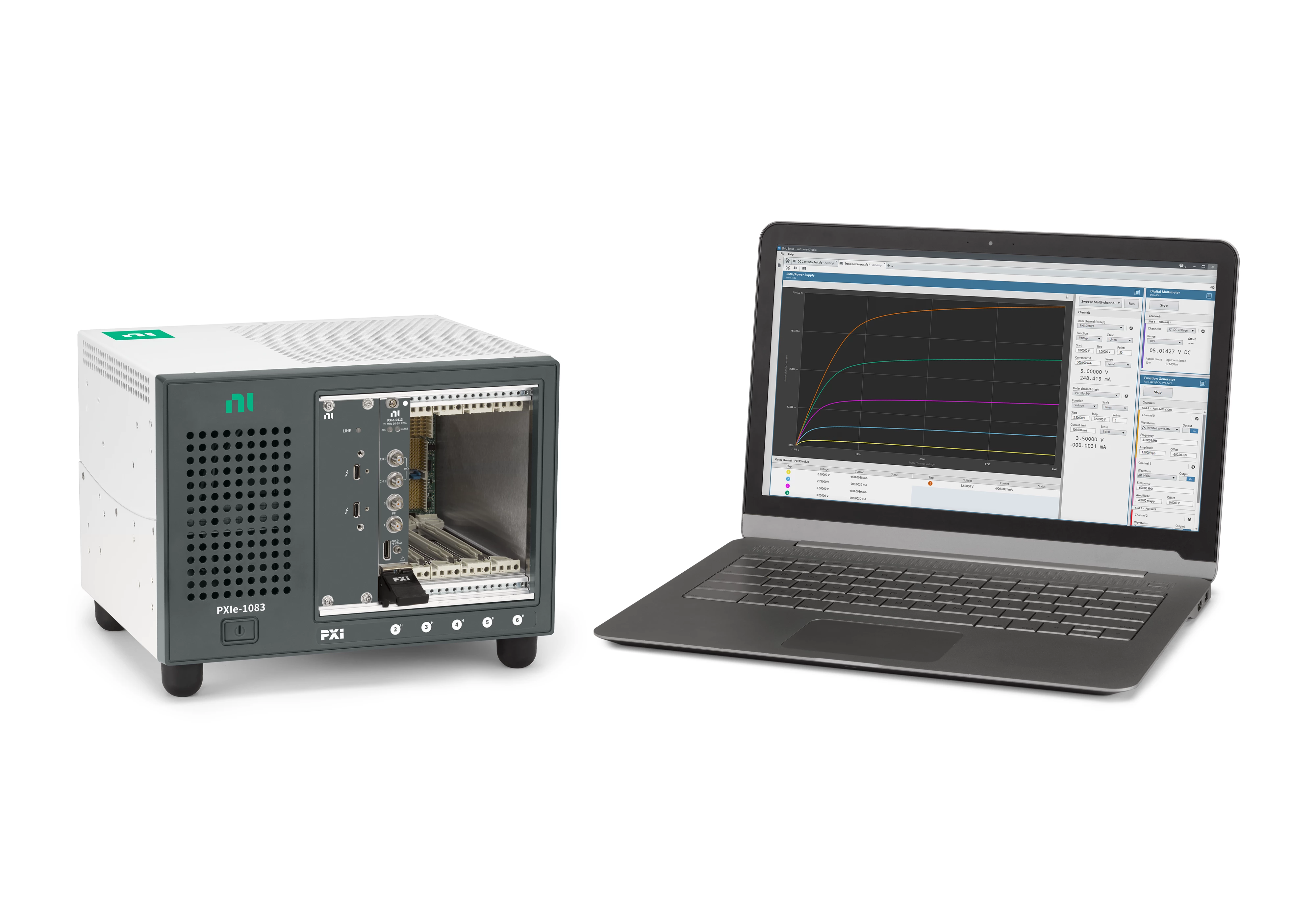

PXI Waveform Generator Bundle
The PXI Waveform Generator Bundle is a preconfigured set of one of NI’s most popular, high-quality waveform generators and a Thunderbolt™-controlled chassis so that you can get started with ease.
Featured Content
The PXIe-54x3 Arbitrary Waveform Generator Family
Receive a new fractional resampling architecture as well as waveform scripting and streaming capabilities with a PXIe-54x3 arbitrary waveform generator.
Onboard Signal Processing (OSP) on NI Signal Generators
The OSP technology on NI signal generators significantly extends waveform playback time and reduces the time required to compute and download waveform data by computing the waveform data using an FPGA.
The Right Waveform Generator for Your Application
Learn about the different types of analog signal generators to choose the right instrument to add to your measurement system.
Application Resource
Fundamentals of Building a Test System
Defining a test strategy and planning system investments are critical to reducing cost, optimizing your test-investment life cycle, and maximizing efficiency. Learn test strategies, best practices, and design tradeoffs for your test systems.
